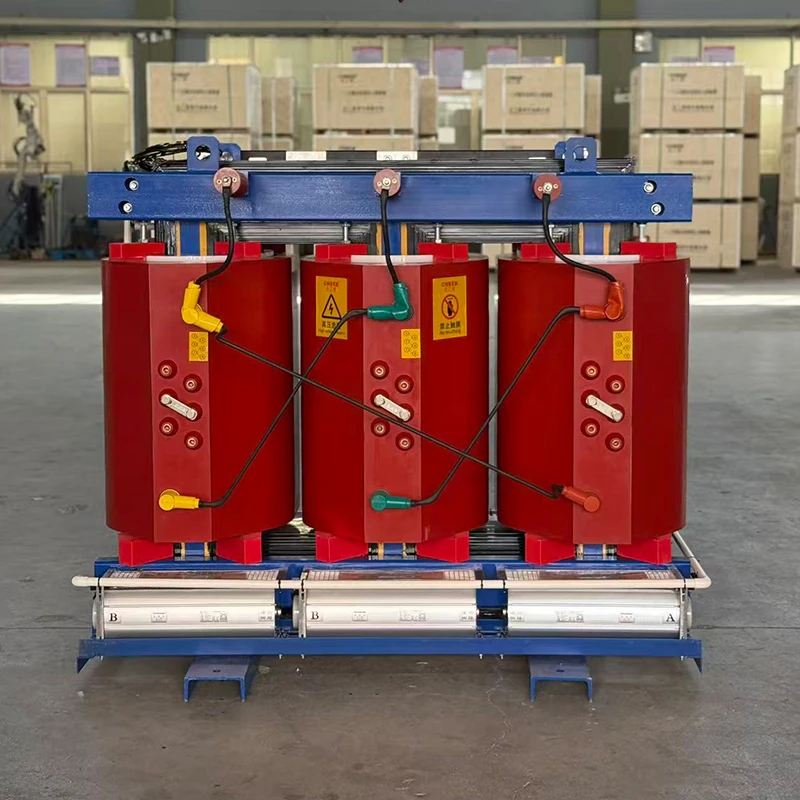

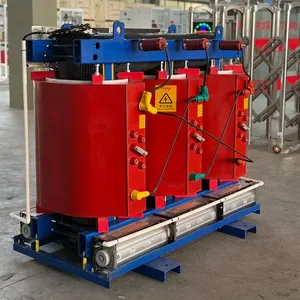

2500 kVA Cast Resin Dry Type Transformer

2500 kVA Cast Resin Dry Type Transformer is prepared for indoor cast-resin transformer duty. It covers 10kV / 11kV / 13.8kV / 33kV input networks and 400V / 415V / 690V output distribution. It uses AN (Base) / AF (Optional) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

The Physical Limit of LV Distribution

For indoor cast-resin transformer duty, the Physical Limit of LV Distribution is treated as a practical design and selection point rather than generic catalog wording.

• The 2500 kVA Dry Type Transformer represents the practical upper limit for low-voltage (400V) indoor distribution. Delivering a continuous output current of approximately 3608 Amps, this unit is typically the largest capacity engineerable before busbar trunking systems become prohibitively expensive or unmanageable.
• As a massive 3 phase dry type transformer, its installation requires specific structural planning. Unlike smaller units, the dynamic weight (often exceeding 6 tons) and the magnetic vibration forces require the unit to be mounted on vibration-dampening pads independent of the building's main slab to effectively isolate structure-borne noise (100 Hz hum).

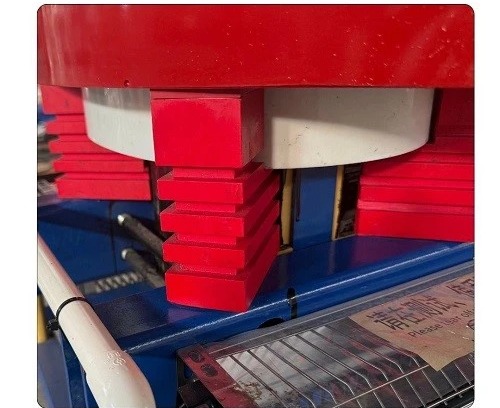

• Anti-vibration pads installed on 2500 kVA transformer base.
• To isolate structure-borne noise.

Foil Winding: Balancing the Vectors

For indoor cast-resin transformer duty, foil Winding: Balancing the Vectors is treated as a practical design and selection point rather than generic catalog wording.

• Handling 3600A eliminates the possibility of using standard wire conductors. Instead, the design uses Full-Width Foil Windings. The engineering advantage lies in the physics of electromagnetic stress.
• Neutralizing Axial Force: In a traditional wire-wound coil, short-circuit currents create a "corkscrew" force that tries to tear the coil apart vertically. In this cast coil transformer, the current sheet covers the full height of the coil. This geometry creates a perfectly uniform magnetic field, effectively neutralizing the axial stress vectors. The result is a winding that remains mechanically static even during a 50kA fault event.
• Certification Reality: This mechanical stability is backed by type-testing against the iec 60076 11 2004 protocol. We specifically highlight the C2/E2/F1 classification, proving the unit's ability to withstand thermal shock (cracking resistance) and humidity without partial discharge, rather than just meeting basic electrical safety.

Resin System: The Thermal Capacitor

For indoor cast-resin transformer duty, resin System: The Thermal Capacitor is treated as a practical design and selection point rather than generic catalog wording.

• As a heavy-duty dry resin transformer, the unit benefits from the physics of mass. The 2.5 MVA core and resin assembly possesses a high Thermal Time Constant.
• Practically, this means the transformer acts like a thermal battery. When heavy loads (like large chillers or pumps) start up, the heat generated is initially absorbed by the mass of the resin rather than instantly raising the conductor temperature. This buffer allows operators to push the unit into overload zones for minutes at a time without triggering the protection relay, providing valuable operational flexibility.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 2500 kVA (2.5 MVA).
• 10kV / 11kV / 13.8kV / 33kV.
• 400V / 415V / 690V.
• Rated Current (LV).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

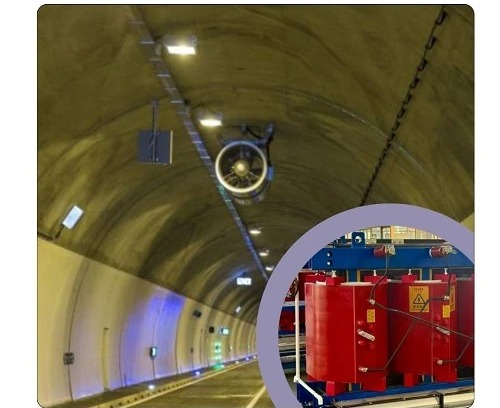

• 2500 kVA dry type transformer powering heavy infrastructure.
• Tunnel ventilation fans.
• Automotive Plants: Serving as the main substation transformer for welding lines, where high-current pulses and harmonic distortion are constant.
• Hyperscale Data Centers: The primary "Block" transformer configuration, stepping down medium voltage to 400V busways feeding server rows.
• Heavy Infrastructure: Powering tunnel ventilation fans and drainage pumps where the F1 fire rating is a mandatory safety requirement.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
