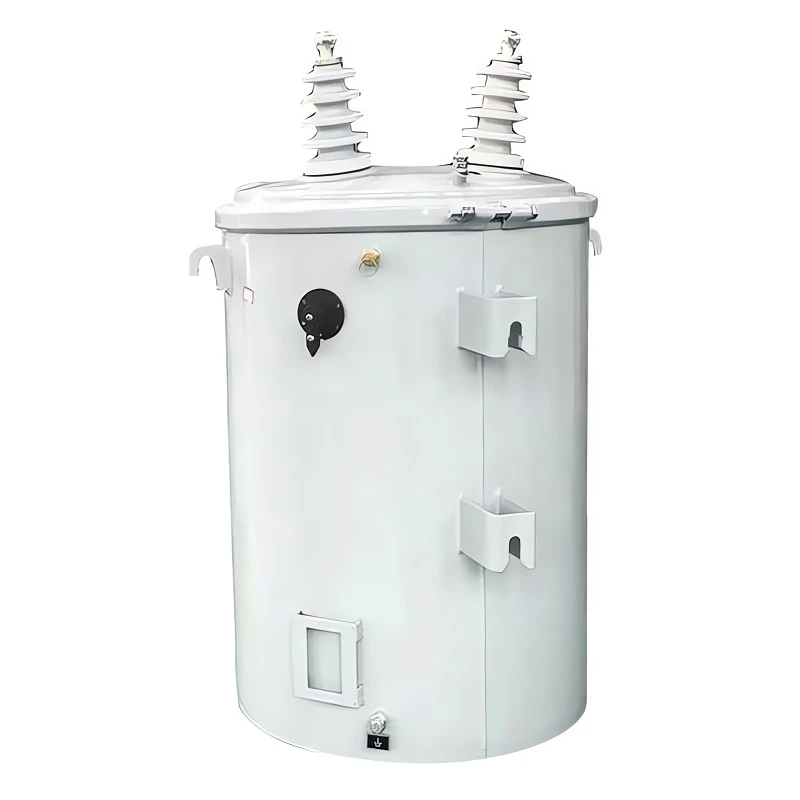

250 kVA Pole-Mounted Distribution Transformer

250 kVA Pole-Mounted Distribution Transformer is prepared for overhead distribution service. It covers 11kV / 13.2kV / 22kV / 33kV input networks and 208Y/120V or 480Y/277V output distribution. It uses ONAN with Radiators cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

Managing High Static Loads

For overhead distribution service, managing High Static Loads is treated as a practical design and selection point rather than generic catalog wording.

• The 250 KVA Pole-Mounted Transformer represents a significant logistical tier in overhead distribution. With a wet weight approaching 1,000 kg, installing this unit moves beyond standard line hardware capabilities. It is typically the largest capacity that utility safety codes allow on a single wood pole structure before mandating a ground-based pad-mount solution.
• Classified as a heavy-duty pole top transformer, the engineering focus shifts from simple electrical conversion to mechanical fastening integrity. Standard cross-arms or single-bolt hangers are insufficient for this mass. Installation typically requires Heavy-Duty Cluster Brackets that wrap around the pole circumference. This distributes the massive vertical shear force across a wider surface area of the timber, preventing bolt tear-out and ensuring structural stability over decades of wind loading.

Phase Configuration: Beyond the 167 kVA Limit

For overhead distribution service, phase Configuration: Beyond the 167 kVA Limit is treated as a practical design and selection point rather than generic catalog wording.

• At this capacity, the internal architecture varies significantly based on the phase requirement.
• Three-Phase Integrated (Triplex): This is the most common configuration for 250 kVA. It serves as a consolidated pole mounted three phase transformer, replacing the need to hang three separate 75 kVA or 100 kVA cans. This reduces the visual profile but concentrates the center of gravity.
• Single-Phase (Custom): The industry-standard "off-the-shelf" limit for single-phase units is the 167 kva pole mounted transformer. A 250 kVA single-phase unit is typically a custom-engineered "Jumbo" tank, specified only when a commercial customer requires massive single-phase power (e.g., for large welding grids) and three-phase service is unavailable in the area.

LV Termination: NEMA Spade Bushings

For overhead distribution service, lV Termination: NEMA Spade Bushings is treated as a practical design and selection point rather than generic catalog wording.

• Delivering power at this scale involves high amperage. For a 208V three-phase application, the current approaches 694 Amps. Standard threaded stud terminals are prone to overheating at these levels due to insufficient contact area.

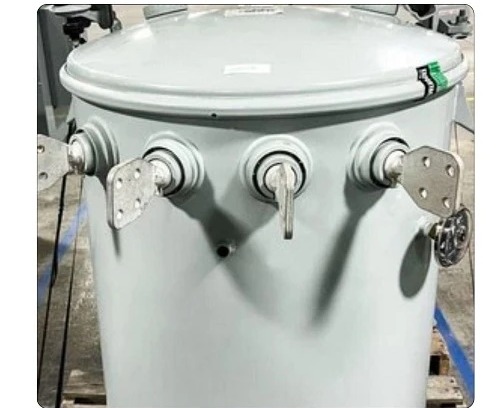

• To mitigate connection resistance, the pole mounted 3 phase transformers are equipped with NEMA 4-Hole or 6-Hole Spade Terminals (Paddle Bushings).
• Copper NEMA spade terminals on low voltage bushings for high.
• Current connections.
• Surface Area: These flat copper spades provide a massive contact surface area compared to eye-bolts.
• Multi-Cable Lugging: The multi-hole pattern allows linemen to bolt two or three parallel cables per phase (e.g., 2 x 500 MCM), distributing the current density and mechanically relieving strain on the porcelain insulators.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 3-Phase (T-Tank) or Single-Phase (Custom).
• 11kV / 13.2kV / 22kV / 33kV.
• 208Y/120V or 480Y/277V.
• Rated Current (LV).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 250 kVA pole mounted transformer cluster serving an industrial.
• Facility retrofit.
• Brownfield Industrial Retrofits: Upgrading power for older manufacturing plants where the facility lot lines are fully built out, leaving no ground space to install a new pad-mounted transformer.
• Dedicated Industrial Service: Serving as the sole 480V service entrance for a standalone medium-sized factory, feeding the main switchboard directly from the street pole.
• Right-of-Way Constraints: Installed in dense urban infrastructure corridors where underground piping or road easements prohibit the excavation required for ground-level units.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.
