250 kVA Cast Resin Dry Type Transformer

250 kVA Cast Resin Dry Type Transformer is prepared for indoor cast-resin transformer duty. It covers 4160V / 6.6kV / 11kV input networks and 400V / 480V / 208V output distribution. It uses AN (Air Natural) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

Capacity Standardization: The 225 vs 250 Upgrade

Capacity Standardization: The 225 vs 250 Upgrade summarizes the protection, safety, or standard-related details that matter during engineering selection.

• The 250 kVA Dry Type Transformer acts as the modern standard for commercial building power, effectively bridging the gap between legacy specifications and current IEC requirements.
• In many regions historically following NEMA standards, the 225 kva dry type transformer was the default specification. the 250 kVA model serves as the direct metric (IEC) replacement. By selecting this unit, facility managers gain approximately 11% additional continuous power capacity within the same installation footprint. This extra headroom is invaluable for handling the "creep" of added electrical loads over the building's lifespan without requiring an early transformer upgrade.

Air Insulated Technology and Safety

Air Insulated Technology and Safety summarizes the protection, safety, or standard-related details that matter during engineering selection.

• When evaluating different types of transformer for indoor use, the decision often centers on fire risk management. As a true air insulated dry type, this unit utilizes ambient air as the primary cooling and dielectric medium between windings, supported by high-temperature solid insulation (Nomex or Aramid paper).
• Zero Fire Load: Unlike oil units that contain hundreds of liters of flammable fuel, this air-insulated design creates almost no fire load. It eliminates the need for fire suppression sprinklers or blast walls in the electrical room, significantly reducing civil engineering costs.
• Flashover Protection: The spacing between the HV and LV coils is rigorously calculated to prevent flashovers through the air gap, even under humid conditions, maintaining high Impulse Withstand capabilities (BIL).

Enclosure and Ingress Protection

Enclosure and Ingress Protection summarizes the protection, safety, or standard-related details that matter during engineering selection.

• Since the active part relies on air circulation, the external enclosure plays a critical role.

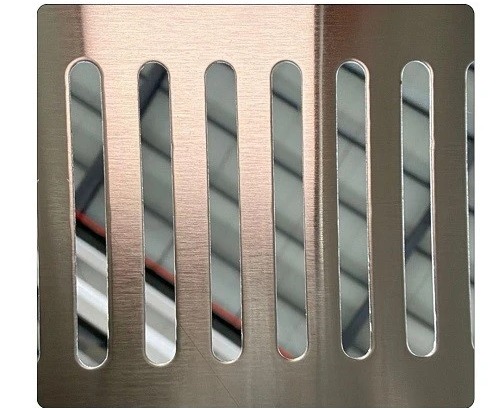

• Close-up of IP23 ventilated steel enclosure protecting 250 kVA.
• Dry type transformer coils.
• IP23 Standard: We typically house the 250 kVA core and coil in a ventilated steel enclosure rated at IP23.
• Physical Barrier: This rating ensures that while cooling air can enter (at a <60° angle), the unit is protected against vertical water drips (e.g., from ceiling condensation) and the ingress of solid objects larger than 12mm (preventing rodents or accidental finger contact with live parts).

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

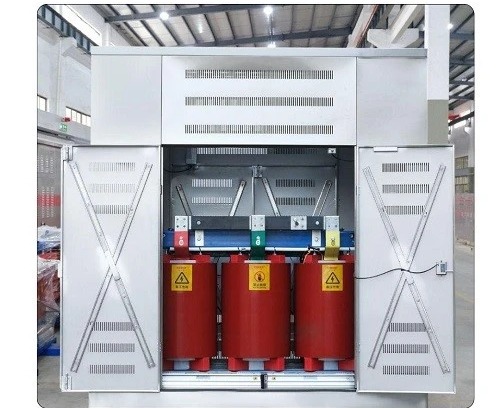

• 250 kVA dry type transformer core and coil fully assembled inside protective steel enclosure.
• Technical Parameter.
• Specification Data.
• 250 kVA (Metric Standard).
• Equivalent Legacy Rating.
• Covers 225 kVA demand.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

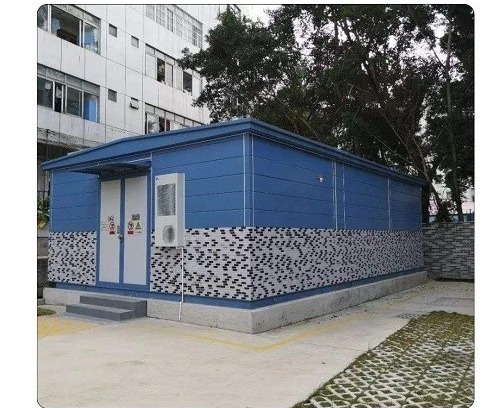

• 250 kVA dry type transformer installed in a university facility for.
• Safe power distribution.
• Educational Facilities: Installing in schools or universities where safety regulations strictly prohibit liquid-filled transformers indoors.
• Office Retrofits: Replacing aging 225 kva dry type transformer units in older office blocks with a modernized, higher-capacity unit.
• Light Manufacturing: Powering assembly lines where the load profile is steady and non-polluting.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.
