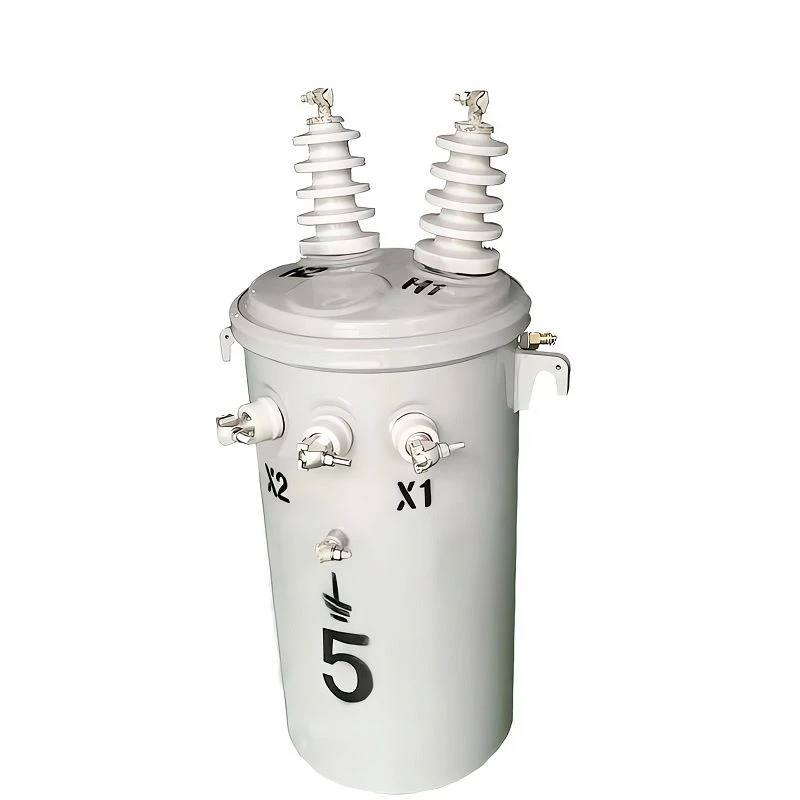

25 kVA Pole-Mounted Distribution Transformer

25 kVA Pole-Mounted Distribution Transformer is prepared for overhead distribution service. It covers 7.2 kV / 7.62 kV / 12.47 kV / 13.8 kV input networks and 120/240 V (3-Wire Split Phase) output distribution. This series description presents the application, construction, protection, and specification details in finished product copy.

The Standard for Suburban Electrification

The Standard for Suburban Electrification summarizes the protection, safety, or standard-related details that matter during engineering selection.

• The 25 KVA Pole-Mounted Transformer is the defining asset of residential distribution grids, particularly in ANSI/IEEE standard regions. Statistically, this is the most deployed capacity rating, optimized to serve small clusters of 3 to 5 single-family homes.
• Utility engineers specify this single phase pole transformer based on the principle of "Load Diversity." While the aggregate connected load of 5 homes might exceed 50 kVA, the probability of all households drawing peak power simultaneously is low. The 25 kVA unit is engineered with a thermal mass that allows it to sustain significant short-term overloads (up to 150-200% for limited periods) during morning and evening peaks without degrading the insulation life, maximizing the asset utilization rate.
• Copper wire being wound onto the coil form for low voltage.

CSP Operations: The "Emergency" Lever

For overhead distribution service, cSP Operations: The "Emergency" Lever is treated as a practical design and selection point rather than generic catalog wording.

• The value of the CSP (Completely Self-Protected) system lies in its operational flexibility for utility crews. It goes beyond simple protection.
• Secondary Fault Isolation: The internal breaker specifically targets faults on the homeowner's side (secondary). If a house has a short circuit, the transformer isolates that specific load without blowing the primary fuse and taking down the whole feeder line.
• Emergency Overload Capability: A distinct feature is the external Emergency Operating Handle. In the event of a thermal trip during a critical demand period (e.g., a heatwave), a lineman can use a hot stick to push this lever into the "Emergency" position. This mechanically recalibrates the breaker to tolerate higher temperatures, allowing power to be restored immediately while accepting a calculated reduction in transformer life.

Dielectric Integrity and Leak Prevention

For overhead distribution service, dielectric Integrity and Leak Prevention is treated as a practical design and selection point rather than generic catalog wording.

• For the line crews referring to this unit in the field as a standard pole mounted xfmr, physical reliability is about preventing flashovers and oil mess.
• Wildlife-Hardened Cover: The tank lid is finished with a specialized electrostatic insulating powder coating (min. 15kV dielectric strength). This is a critical defense against wildlife outages. Even if a squirrel bridges the gap between the HV bushing and the tank cover, the coating blocks the current path to the ground, preventing the flashover that would typically blow the fuse.
• Uniform Gasket Compression: Instead of a bolted flange which can warp, the design uses a Single-Bolt Retaining Ring. This applies perfectly even pressure around the entire circumference of the gasket. This structural logic effectively eliminates "oil weeping"-the slow seepage of oil down the tank sides that attracts dirt and signals premature seal failure.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 25 kVA (Single Phase).
• 2 kV / 7.62 kV / 12.47 kV / 13.8 kV.
• 120/240 V (3-Wire Split Phase).
• CSP (Internal Breaker + Emergency Handle).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 25 kVA pole mounted transformer serving a cluster of.
• Single-family homes.
• Cul-de-sac Power: Feeding standard 200A service drops to detached residential properties.
• Rural Water Pumps: Providing dedicated power to 10HP agricultural irrigation pumps where the CSP breaker protects the motor from stalling/overheating.
• Light Commercial: Serving small roadside convenience stores or gas stations with single-phase lighting and refrigeration loads.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
