22mm Capacitive Switch | Langir Touch Control Switch

Series Part Number

Part Number:	CP	22	A0	RY	F	1	P	Z	NO	M	B	S
Explanation:	Series CP - Capacitive switch	Switch Size 16 - 16mm 19 - 19mm 22 - 22mm 25 - 25mm	Colours / Materials A0 - Natural anodized aluminum A1 - Blue anodized aluminum A2 - Black anodized aluminum A3 - Green anodized aluminum A5 - Gold anodized aluminum A6 - Red anodized aluminum B - Stainless steel 316L	Operator R1 - Flat, operator height 4.5mm; available with illuminated ring on 16mm only R2 - Flat, operator height 3.00mm; available with illuminated ring on 19mm only RY - With chamfer, operator height 4.5mm (.177in); available with thin or large illuminated ring on 22mm and 25mm only RZ - Flat, operator height 4.5mm (.177in); available with thin or large illuminated ring on 22mm and 25mm only Blank - Chamfer, operator height: 16mm=2.00mm; 19mm=3.00mm The operator can be customized.	Terminals F - Flying leads X - Cable C - Connector The terminals can be customized.	Ratings 1 - 200mA 24VAC/DC 2 - 1A 24VAC/DC The ratings can be customized.	Type of Illumination / Voltage Blank - Non-illuminated A - 13.5 large ring, 5VDC N - 13.5 large ring, 12VDC K - 13.5 large ring, 24VDC P - 16.5 thin ring, 5VDC J - 16.5 thin ring, 12VDC Y - 16.5 thin ring, 24VDC P, J and Y are for 22mm and 25mm diameters only.	Output Blank - NPN Z - PNP	Switch Status NO - Normally open NC - Normally closed	Switch Function M - Momentary L - Latching	LED Colours Blank - Non-illuminated B - Blue G - Green R - Red Y - Yellow W - White RG - Red/green RY - Red/yellow RB - Red/blue RW - Red/white GB - Green/blue GY - Green/yellow GW - Green/white BY - Blue/yellow BW - Blue/white YW - Yellow/white	LED Function S - Independent C - Output indicator

Description

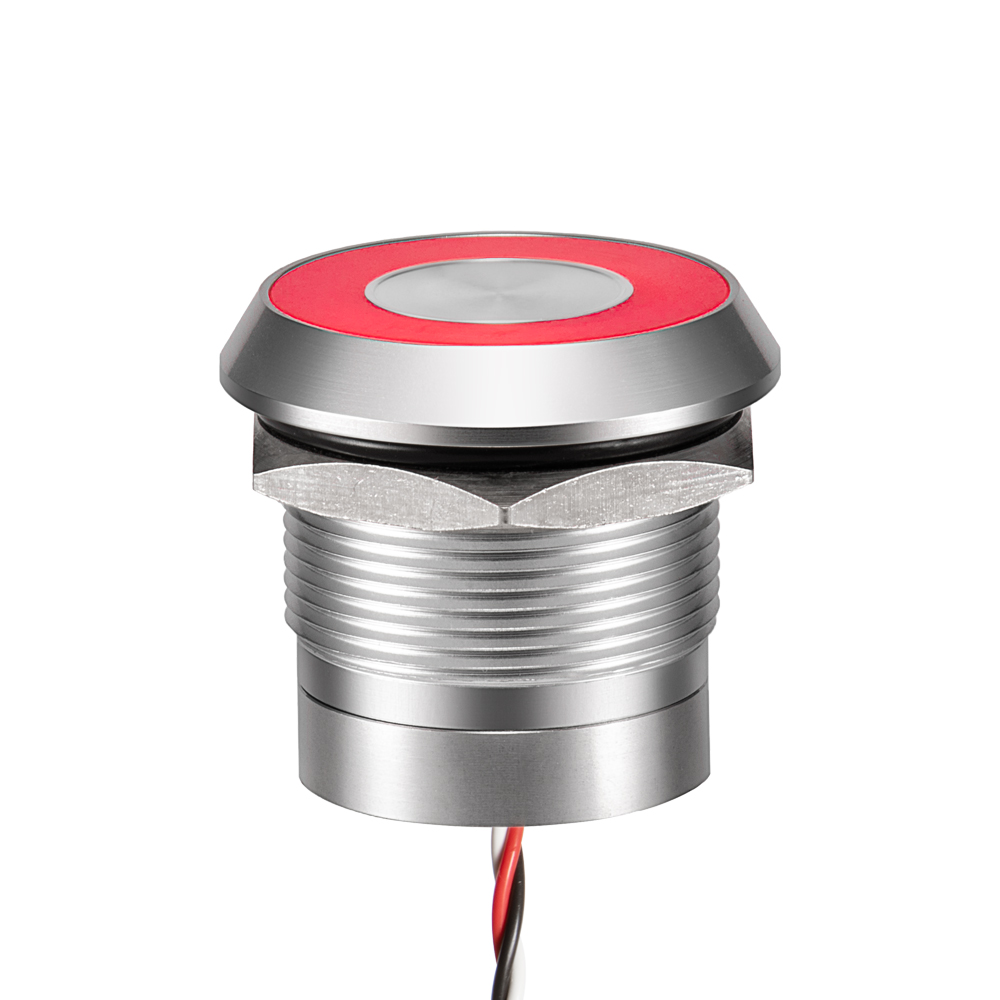

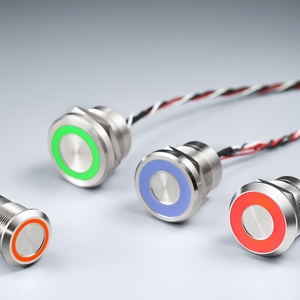

The 22mm Capacitive Switch is designed for robust touch-control panels where ease of use and durability are essential. The capacitive sensor activates without mechanical force and automatically adjusts to environmental changes for consistent performance.

Main Features

22mm bushing size
0N operating force for fatigue-free operation
Momentary or latching versions
NPN or PNP output type
Adjustable sensitivity
No moving mechanical parts to wear out
IP68/IP69K sealing and IK10 impact resistance

Specifications

Supply voltage	5-24VDC
Max. current / voltage rating	200mA, 24VDC
Life expectancy	50 million cycles
Operating temperature	-20°C to +65°C
Power consumption	7mA non-illuminated, 25mA illuminated
Case materials	Stainless steel, anodized aluminium, and plastic options

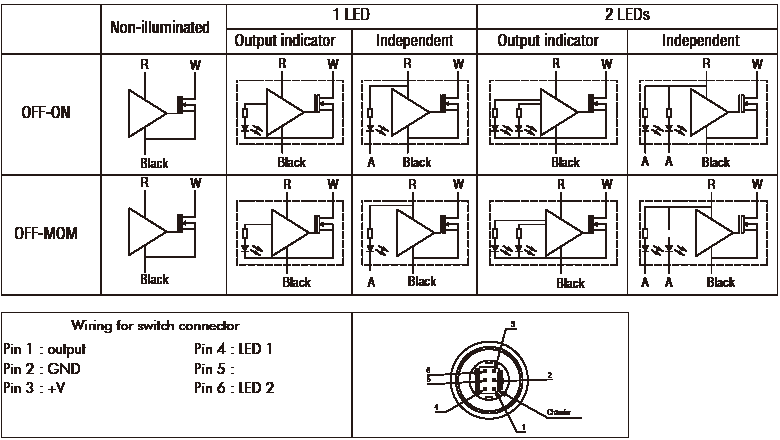

Wiring Diagrams

22mm capacitive switch wiring diagrams

Documents

Capacitive Switch Catalog
