200 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. This series description presents the application, construction, protection, and specification details in finished product copy.
Key Advantages
For ground-level utility and industrial distribution, key Advantages is treated as a practical design and selection point rather than generic catalog wording.
This 200 kVA pad-mounted transformer prioritizes energy efficiency and dependable outdoor operation. Its three-phase design ensures smooth voltage regulation and safe service in standard distribution environments.
Product Use
For ground-level utility and industrial distribution, product Use is treated as a practical design and selection point rather than generic catalog wording.
The pad - mounted transformer serves as an integrated prefabricated product that combines distribution network power supply unit cables, high - voltage control, protection, substation, and power distribution equipment. It is widely applied in urban and rural distribution networks. The transformer and high - low voltage equipment are closely connected into one unit. Three sides of the transformer are exposed to the air, ensuring good heat dissipation conditions. Moreover, the transformer can be separated from the high - low voltage equipment housing, facilitating maintenance. Power distribution switchgear is installed on the high and low voltage sides.
Model Description
For ground-level utility and industrial distribution, model Description is treated as a practical design and selection point rather than generic catalog wording.
Taking the ZBW series as an example, the model is represented as ZBW - 12/0.4 - □ - □ - □. The first part "ZBW" indicates the prefabricated substation. "12/0.4" represents the rated voltage levels, with 12kV for the high - voltage side and 0.4kV for the low - voltage side. The subsequent boxes respectively denote the high - voltage measurement of rated voltage (KV), low - voltage measurement of rated voltage (KV), and rated capacity of the transformer (KVA).
Environmental Conditions of Use
For ground-level utility and industrial distribution, environmental Conditions of Use is treated as a practical design and selection point rather than generic catalog wording.

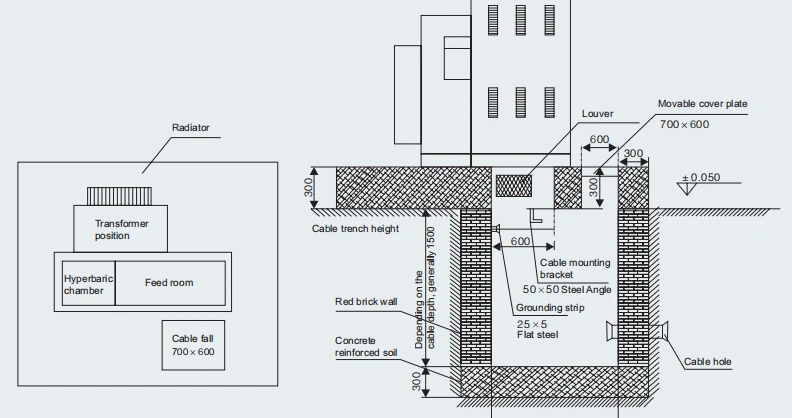

Cooling Method: Air Self-Cooling Operating Environment Requirements: The outdoor ambient temperature shall not exceed 40°C and shall not be lower than -45°C; the altitude shall not exceed 1,000 meters; the monthly average temperature shall not exceed 30°C; and the annual average temperature shall not exceed 20°C. At a temperature of 25°C, the relative air humidity shall not exceed 95%, and the monthly average relative humidity shall not exceed 90%. Horizontal acceleration shall not exceed 0.3g, and vertical acceleration shall not exceed 0.15g. The installation environment shall be free from obvious pollution, and shall be free of explosive or corrosive gases and dust. Additionally, the installation site shall be free from violent vibration and impact; the equipment must be installed on a cement platform or another flat, solid platform.
Note: Should there be any other circumstances not covered by these technical specifications, the user shall negotiate with the Company.
Product Advantages
For ground-level utility and industrial distribution, product Advantages is treated as a practical design and selection point rather than generic catalog wording.
Compact structure, small size, easy installation.
Applicable to ring network and terminal power supply, ensuring personal safety.
Low loss, low noise, excellent performance, and anti-theft box structure.
Low temperature rise and strong overload capacity.
Product Structure Features
For ground-level utility and industrial distribution, product Structure Features is treated as a practical design and selection point rather than generic catalog wording.

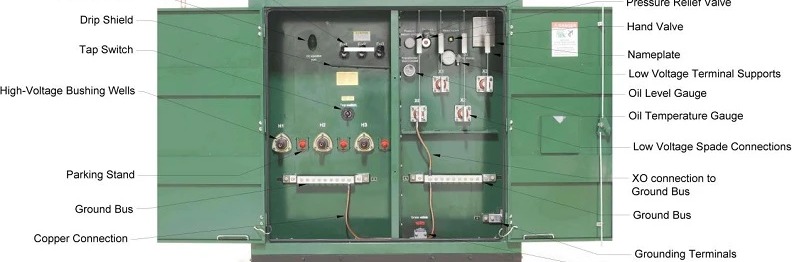

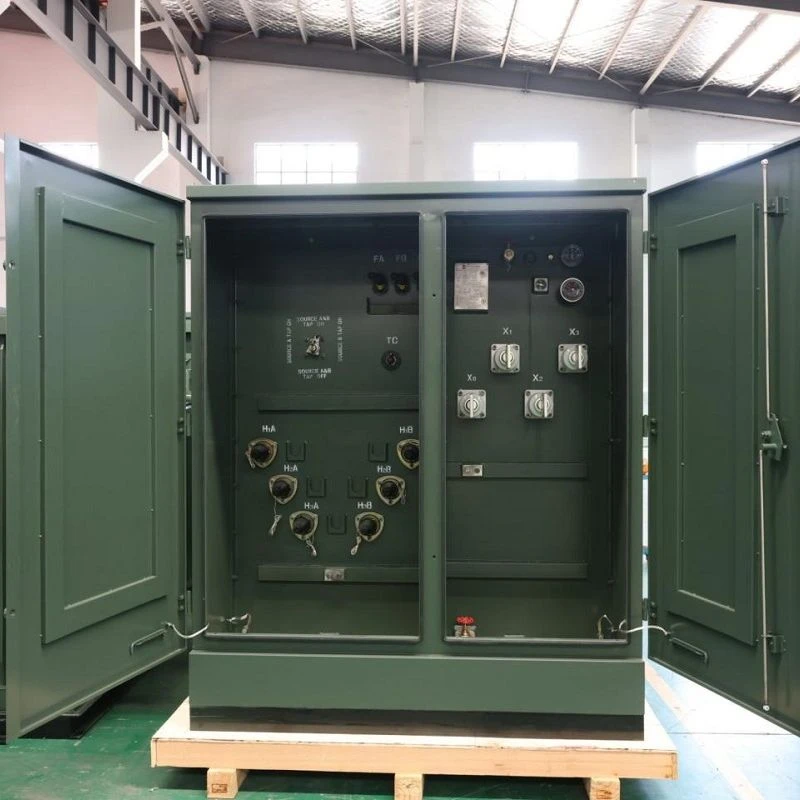

Transformer and Chambers: The pad-mounted transformer uses the 813 series oil-immersed transformer with a chip-type oil tank (no oil cushion, fully enclosed). High/low-pressure bushings, tap changers, oil level indicators, pressure release valves, oil release valves, etc., are mounted on the high-pressure chamber end plate for easy observation and operation. Its high/low-pressure chambers are separated by steel plates (relatively independent) and integrated into a complete box.

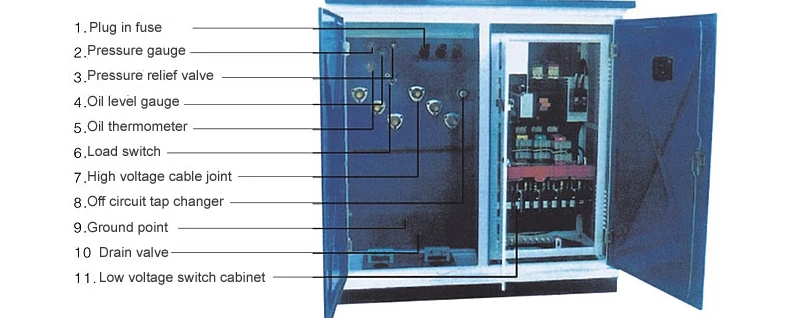

Components: It is equipped with plug - in fuses, pressure gauges, pressure relief valves, oil level gauges, oil thermometers, load switches, high - voltage cable joints, off - circuit tap changers, ground points, drain valves, and low - voltage switch cabinets, etc.
Load Switch: It is an oil - immersed, three - phase linkage switch with a spring operating mechanism. It can be operated with load, and its closing speed has nothing to do with the operating force. There are types such as two - station, four - station T type, and four - T position V type to choose from.
Applicable Standards
Applicable Standards summarizes the protection, safety, or standard-related details that matter during engineering selection.
This product complies with the following standards.
DL/T 537-1993 Technical Conditions for Ordering 6-35kV Box-Type Substations.
Electrical and Mechanical Data
The table data is organized for quick rating comparison, project specification, and transformer selection.
S/N
Name
Unit
Technical Parameter
1
Rated Voltage
KV
10/0.4
2
High-voltage Side Rated Voltage
KV
10
3
Low-voltage Side Rated Voltage
KV
0.4
4
Maximum operating voltage (High voltage side)
KV
12
5
Rated Frequency
Hz
50
6
Rated Capacity
KVA
150-1600
7
High-voltage Switch Heat Stable Capacity
KA
20/26
8
Low-voltage Main Circuit Breaker Rated Short-circuit Breaking Capacity
KA
35
9
Low-voltage Distribution Circuit Breaker Rated Short-circuit Breaking Capacity
KA
35
10
High-voltage Load Switch Transfer Current
A
>1500
11
1 min Power Frequency Withstand Voltage
KV
35
12
Lightning Impulse Voltage
KV
75
13
Cooling Mode
Oil immersed self-cooling
14
High-voltage Backup Fuse Breaking Current
KA
50
15
Breaking Current of Plug-in Fuse
KA
2.5
16
Ambient Temperature
℃
35 ~ +40
17
Coil Allowable Temperature Rise
K
65
18
No-load Voltage Regulation
%
±5% or ±2 × 2.5%
19
Noise Level
DB
<50
20
Protection Grade of Box Shell
Not less than IP3X
S/N
Name
Unit
Technical Parameter
1
Rated Voltage
KV
10/0.4
2
High-voltage Side Rated Voltage
KV
10
3
Low-voltage Side Rated Voltage
KV
0.4
4
Maximum operating voltage (High voltage side)
KV
12
5
Rated Frequency
Hz
50
6
Rated Capacity
KVA
150-1600
7
High-voltage Switch Heat Stable Capacity
KA
20/26
8
Low-voltage Main Circuit Breaker Rated Short-circuit Breaking Capacity
KA
35
9
Low-voltage Distribution Circuit Breaker Rated Short-circuit Breaking Capacity
KA
35
10
High-voltage Load Switch Transfer Current
A
>1500
11
1 min Power Frequency Withstand Voltage
KV
35
12
Lightning Impulse Voltage
KV
75
13
Cooling Mode
Oil immersed self-cooling
14
High-voltage Backup Fuse Breaking Current
KA
50
15
Breaking Current of Plug-in Fuse
KA
2.5
16
Ambient Temperature
℃
35 ~ +40
17
Coil Allowable Temperature Rise
K
65
18
No-load Voltage Regulation
%
±5% or ±2 × 2.5%
19
Noise Level
DB
<50
20
Protection Grade of Box Shell
Not less than IP3X
Rated voltage(KV)
10
0.4
Transformer
Switch to ground and phase to phase
Between disconnectors
Power frequency withstand voltage (KV)
35
42
48
2.5
Peak value of impulse withstand voltage(KV)
75
75
85
–
Capacity KVA
Voltage KV
Join group label
No-load current %
No load loss W
Impedance voltage %
Load loss
High tension
Low pressure
S9
S10
S11
S9
S10
S11
160
10±5% or 2×2.5%
0.4
Dyn11 Yno
1.4
1.4
0.2
400
320
255
4.0
2200
200
1.3
1.3
0.2
480
380
305
2600
250
1.2
1.2
0.2
560
450
360
3050
315
1.1
1.1
0.2
670
530
425
3650
400
1.0
1.0
0.15
800
650
505
4300
500
1.0
1.0
0.15
960
750
605
5100
630
0.9
0.9
0.15
1200
910
755
6200
800
0.8
0.8
0.15
1400
1080
980
7500
1000
0.7
0.7
1700
1260
4.5
10300
1250
0.6
0.6
1950
12000
Item Name
Units
315A
630A
Rated voltage
KV
12
12
Maximum current
A
315
630
Rated frequency
Hz
50
50
Rated short-circuit closing current
KA
31.5
50
Rated short-time withstand current
KA
12.5
50
Rated short endurance time
S
2
2
Mechanical life
Second-rate
2000
2000
Lightning impulse test
Phase to phase
KV
75
75
Isolation fracture
85
85
1min power frequency withstand voltage
Phase to phase
KA
42
42
Isolation fracture
48
48
Rated peak withstand current
KV
31.5
50
Capacity
A
B
C
H
Weight KG
200kVA and below
1830
1420
820
1850
＜ 2800
250-400kVA
1830
1450
850
1980
3000-3300
500-630kVA
1830
1480
880
2070
3600-3950
800kVA
2200
1700
950
2170
4500
Capacity
A
B
C
H
Weight KG
315kVA
2560
1600
600
1000
3050
400kVA
2560
1600
600
1000
3270
500kVA
2560
1600
600
1000
3400
630kVA
2560
1600
600
1000
3900
800kVA
2760
1600
800
1000
4200
1000kVA
2760
1950
800
1000
4800
1250kVA
2910
1950
800
1000
5400
1600kVA
2200
1700
950
2170
4500

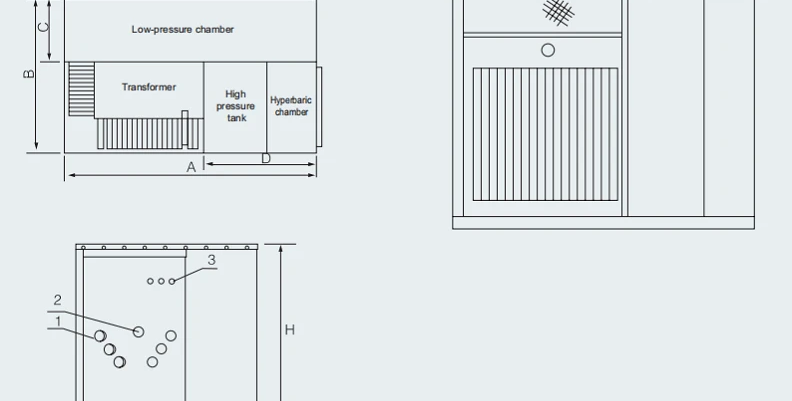

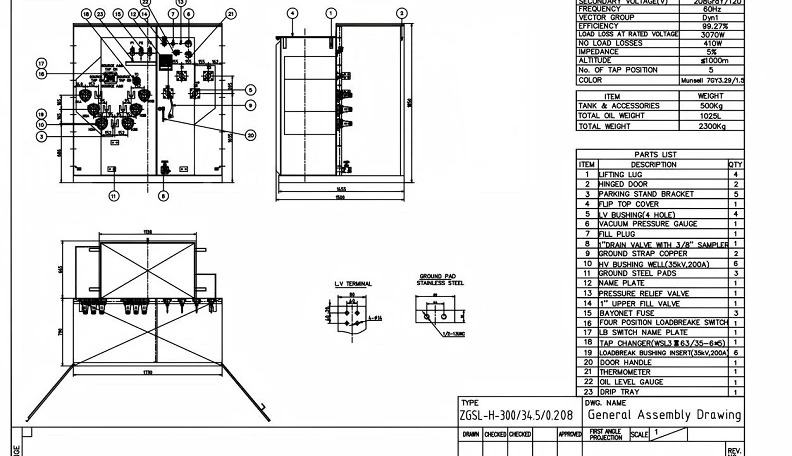

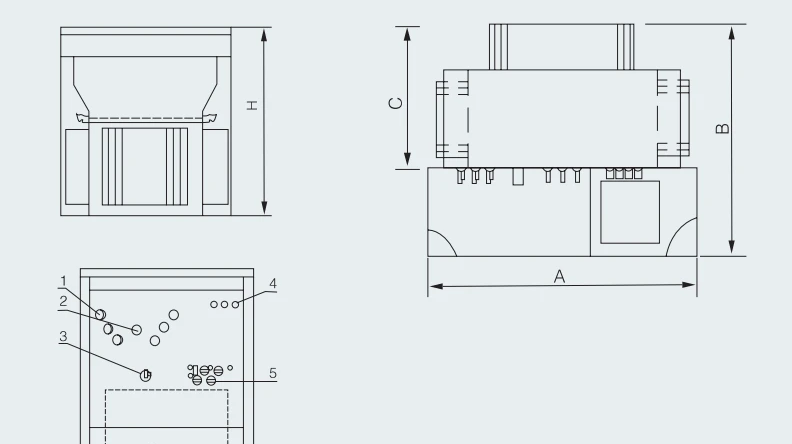

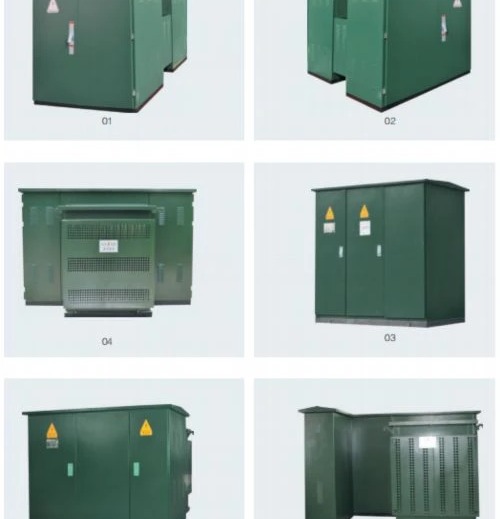

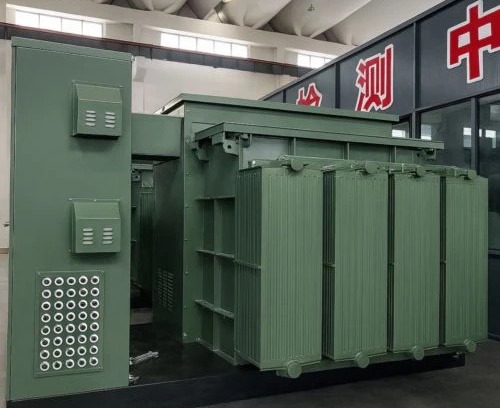

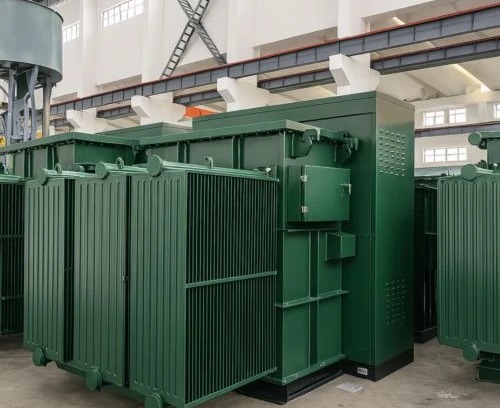

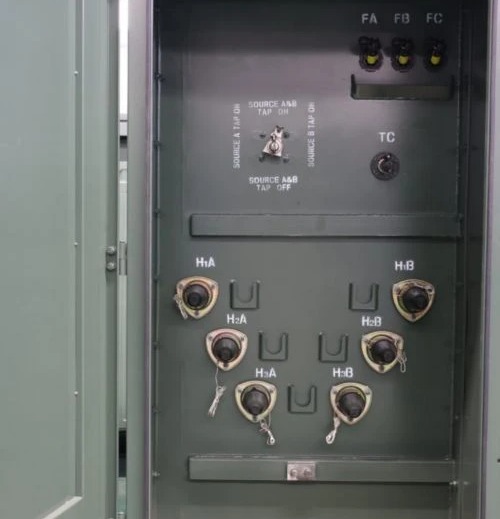

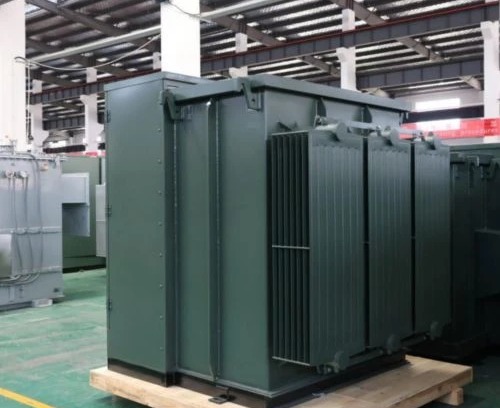

Product Detail Images
