| Part Number: | PZ | 19 | B | RA | F | K | 1 | NO | M | R |
|---|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Series PZ - Piezo switch |
Switch Size 19 - 19mm |

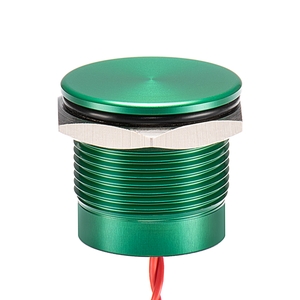

Colors / Materials A0 - Natural anodized aluminum |
Operator RA - Operator with finger location, height 3.00mm The operator can be customized. |
Terminals F - Flying leads The terminals can be customized. |
Type of Illumination / Voltage Blank - Non-illuminated |
Ratings 1 - 200mA 24VAC/DC |
Switch Status NO - Normally open |
Switch Function M - Momentary |

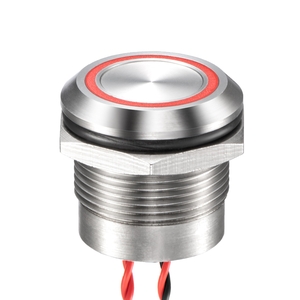

LED Colors Blank - Non-illuminated RG - Red/green TA - Red/green/blue |

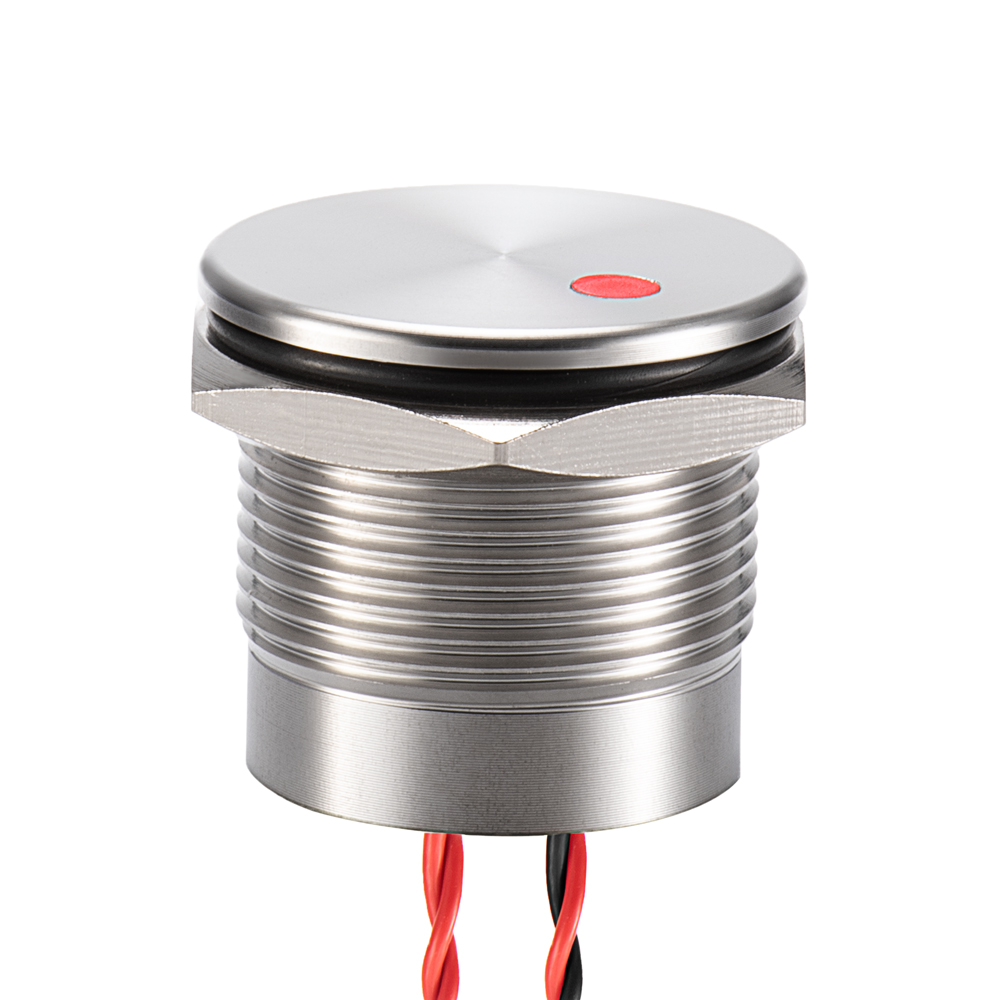

The 19mm Piezo Switch is a sealed metal touch switch designed for reliable operation in high-use control panels. Its piezoelectric actuation provides a solid-state output with a long operating life, while the flush actuator helps prevent the entry of liquids, dust, and cleaning agents.
| Voltage | 1-24V AC/DC |
| Switching current | 0.2A / 1A |
| Pulse duration | 125-300ms |
| Rated breaking capacity | 1W |
| Actuating force | 3-5N |
| Actuating travel | 0.002mm |
| Connection | Wires |
| Operating temperature | -40°C to 75°C standard |
| IP protection | IP69K front and back |
The 19mm format is a practical choice for machinery interfaces, access control, ticketing and kiosk equipment, marine panels, and washdown environments.
