| Part Number: | CP | 19 | A0 | R2 | F | 1 | A | Z | NO | M | B | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Series CP - Capacitive switch |
Switch Size 16 - 16mm |
Colours / Materials A0 - Natural anodized aluminum |
Operator R1 - Flat, operator height 4.5mm; available with illuminated ring on 16mm only The operator can be customized. |
Terminals F - Flying leads The terminals can be customized. |
Ratings 1 - 200mA 24VAC/DC The ratings can be customized. |
Type of Illumination / Voltage Blank - Non-illuminated P, J and Y are for 22mm and 25mm diameters only. |
Output Blank - NPN |
Switch Status NO - Normally open |
Switch Function M - Momentary |
LED Colours Blank - Non-illuminated RG - Red/green |
LED Function S - Independent |

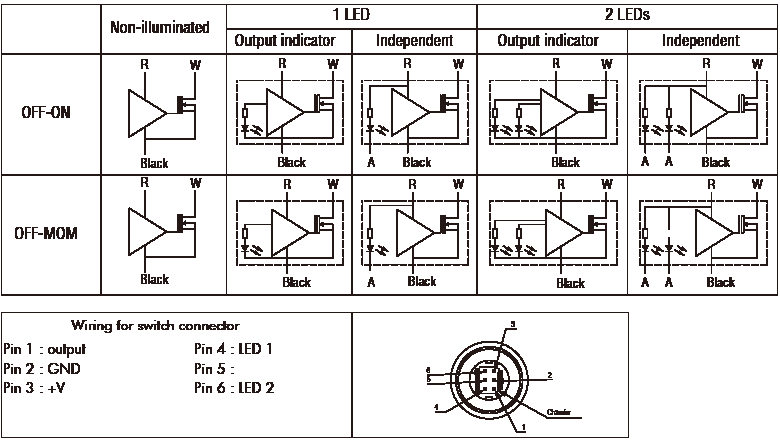

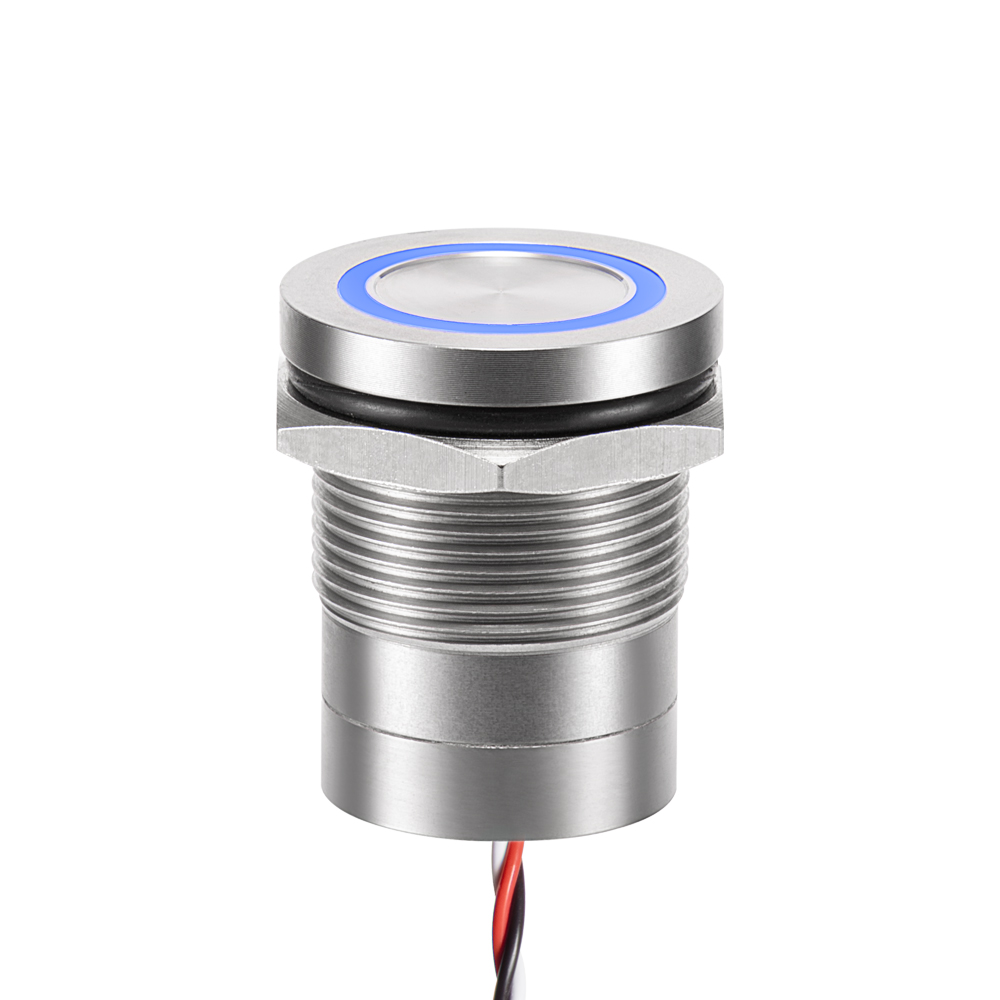

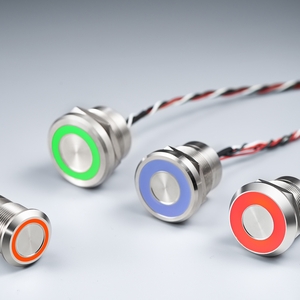

The 19mm Capacitive Switch provides responsive touch control for industrial panels, equipment interfaces, and public terminals. It senses a finger touch without mechanical movement, reducing operator fatigue in repetitive-use applications.
| Supply voltage | 5-24VDC |
| Max. current / voltage rating | 200mA, 24VDC |
| Operating force | 0N |
| Operating temperature | -20°C to +65°C |
| ESD performance | Complies with EN61000-4-2 extended test levels |
| Power consumption | 7mA non-illuminated, 25mA illuminated |
| Terminal options | Multi-wire leads, cable, or HE14-compatible connector depending on model |
