| Part Number: | PZ | 16 | B | R1 | F | N | 1 | NO | M | R |
|---|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Series PZ - Piezo switch |
Switch Size 16 - 16mm |

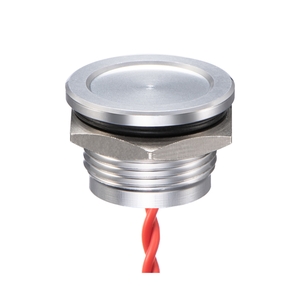

Colors / Materials A0 - Natural anodized aluminum |
Operator R5 - Operator with finger location, height 4.50mm The operator can be customized. |
Terminals F - Flying leads The terminals can be customized. |
Type of Illumination / Voltage Blank - Non-illuminated |
Ratings 1 - 200mA 24VAC/DC |
Switch Status NO - Normally open |
Switch Function M - Momentary |
LED Colors Blank - Non-illuminated RG - Red/green TA - Red/green/blue |

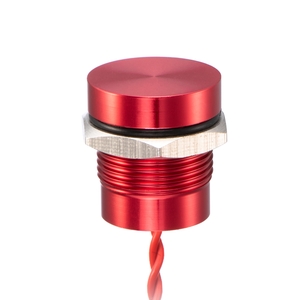

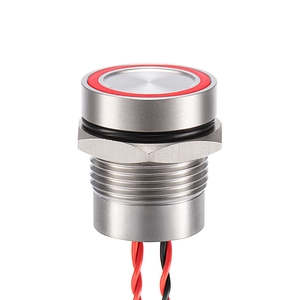

The 16mm Piezo Switch provides durable touch actuation in a compact metal housing. It uses a solid-state piezo output, so there are no mechanical contacts to wear out, and the closed flat surface supports easy cleaning in harsh or hygienic environments.
| Voltage | 1-24V AC/DC |
| Switching current | 0.2A / 1A |
| Pulse duration | 125-300ms |
| Rated breaking capacity | 1W |
| Actuating force | 3-5N |
| Connection | Wires |
| Operating temperature | -40°C to 75°C standard |
| IP protection | IP69K front and back |
| Impact protection | IK06 |
This series is suited to industrial control panels, transport systems, medical and food-processing equipment, public terminals, and applications where a clean, vandal-resistant actuator is required.
