| Part Number: | CP | 16 | A0 | R1 | F | 1 | A | Z | NO | M | B | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Series CP - Capacitive switch |
Switch Size 16 - 16mm |
Colours / Materials A0 - Natural anodized aluminum |
Operator R1 - Flat, operator height 4.5mm; available with illuminated ring on 16mm only The operator can be customized. |
Terminals F - Flying leads The terminals can be customized. |
Ratings 1 - 200mA 24VAC/DC The ratings can be customized. |
Type of Illumination / Voltage Blank - Non-illuminated P, J and Y are for 22mm and 25mm diameters only. |
Output Blank - NPN |
Switch Status NO - Normally open |
Switch Function M - Momentary |
LED Colours Blank - Non-illuminated RG - Red/green |
LED Function S - Independent |

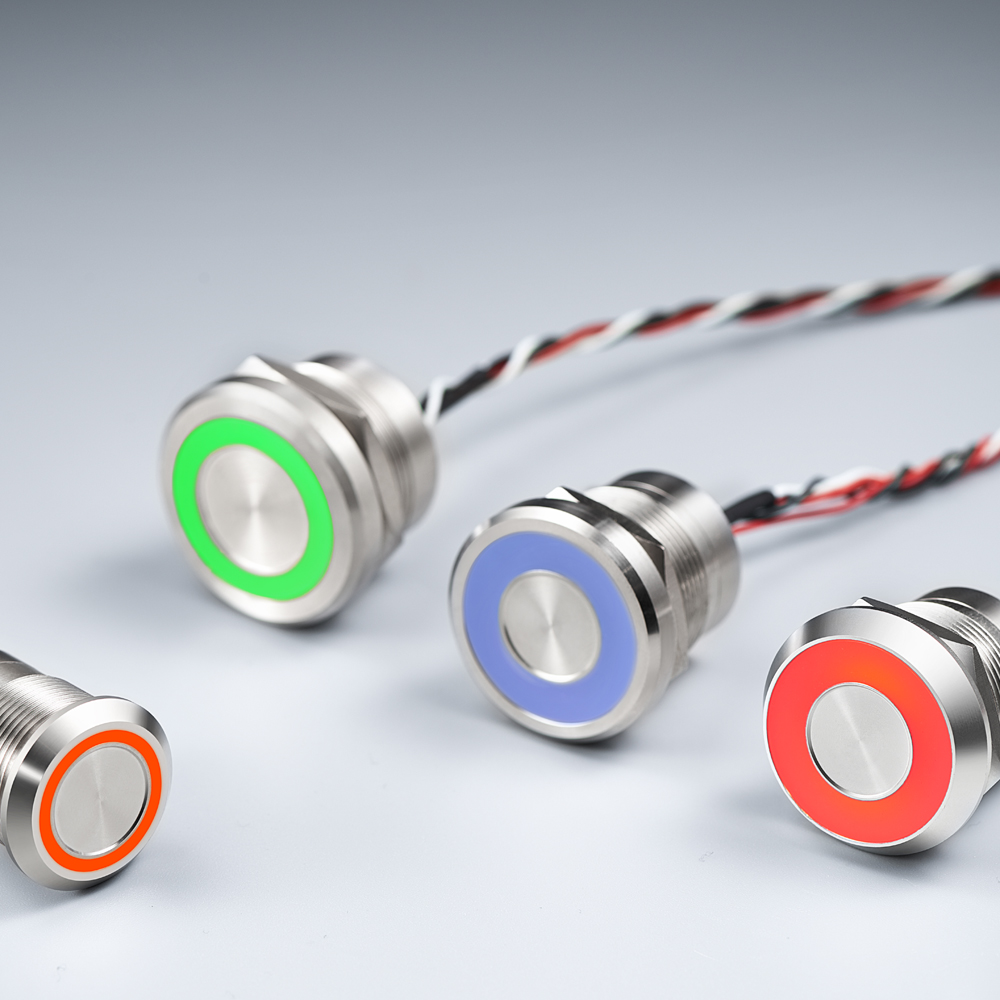

The 16mm Capacitive Switch uses touch-sensing technology to activate the output with no mechanical travel. Auto-calibration helps the sensor adapt to changing external conditions, making it suitable for repetitive industrial and public-use interfaces.
| Supply voltage | 5-24VDC |
| Max. current / voltage rating | 200mA, 24VDC |
| Operating force | 0N |
| Operating temperature | -20°C to +65°C |
| Power consumption, non-illuminated | 7mA |
| Power consumption, illuminated | 25mA |
| Case materials | Stainless steel, anodized aluminium, and plastic options |
