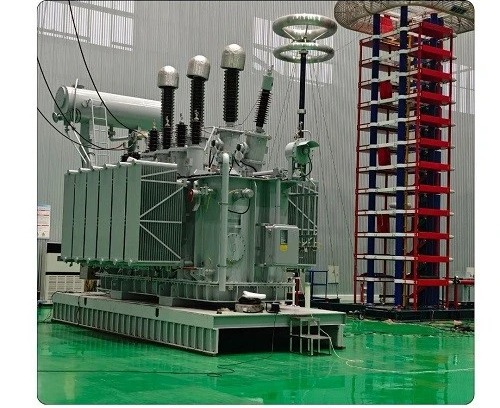

16000 kVA Oil-Immersed Distribution Transformer

16000 kVA Oil-Immersed Distribution Transformer is specified for 16,000 kVA (16 MVA) oil-immersed distribution service. It steps 33kV / 66kV networks to 11kV / 6.6kV loads. It uses ONAN / ONAF (Fans add 20-25%) cooling. Engineering details address maintenance-Free Voltage Regulation, construction, application context, and electrical data for project selection.

Maintenance-Free Voltage Regulation

For this 16000 kVA rating, maintenance-free voltage regulation affects how the transformer is selected, protected, and operated in the field.

• It functions as a strategic node in power transmission, typically handling the step-down from 66kV or 33kV to distribution voltages.
• At this scale, operational continuity is paramount.
• A standard transformer requires frequent downtime to service the On-Load Tap Changer (OLTC), but this rating is engineered to eliminate that bottleneck.
• The configuration can use this premium oil immersed type transformer with Vacuum Interrupter Technology for its OLTC system.
• Traditional tap changers quench arcs in oil, creating carbon sludge that degrades the dielectric strength of the tap compartment.

Precision Thermal Monitoring

The precision thermal monitoring details below highlight design choices that matter during continuous distribution service.

• Managing the thermal load of 16 MVA requires more than just estimating temperatures.
• Standard oil thermometers often lag behind the actual winding conditions during rapid load spikes.
• Direct sensing: the transformer can integrate Fiber Optic Temperature Sensors embedded directly into the winding "hot spots" during manufacturing.
• Real-time data: This provides operators with real-time, lag-free data on the winding insulation temperature.
• It allows for precise dynamic loading-enabling you to safely push the oil immersed type transformer beyond its nameplate rating during emergency grid events without risking insulation life.

Impedance & Short Circuit Engineering

These impedance and short circuit engineering points connect the electrical rating with grid conditions, downstream equipment, and maintenance expectations.

• To ensure grid coordination, the electrical geometry is optimized for high reactance.
• Fault current limiting uses a standard Impedance Voltage (Uk) of 10.0%.
• This high impedance value is a calculated necessity to limit the secondary short-circuit current to below 25kA/31.5kA, protecting the downstream 11kV switchgear from explosive mechanical forces.

Typical Application Context

Application guidance links the transformer rating with the substations, industrial loads, and site conditions where it is normally used.

• Zonal Substations: The main feeder transformer for a dense urban district or industrial park, stepping down 66kV sub-transmission power.
• Data Center Campuses: Installed as the primary N+N redundant supply for hyperscale facilities (20MW+ IT load).
• Large-Scale Manufacturing: Powering heavy metallurgy or chemical electrolysis plants where load stability is non-negotiable.

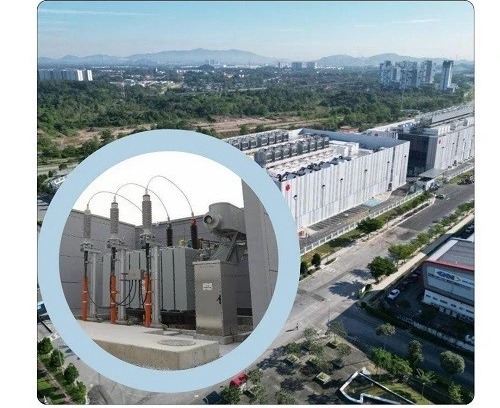

• 16000 kVA oil immersed transformer powering a hyperscale data center campus.

Electrical and Mechanical Data

The electrical data summarizes the main values needed for project comparison and project comparison.
