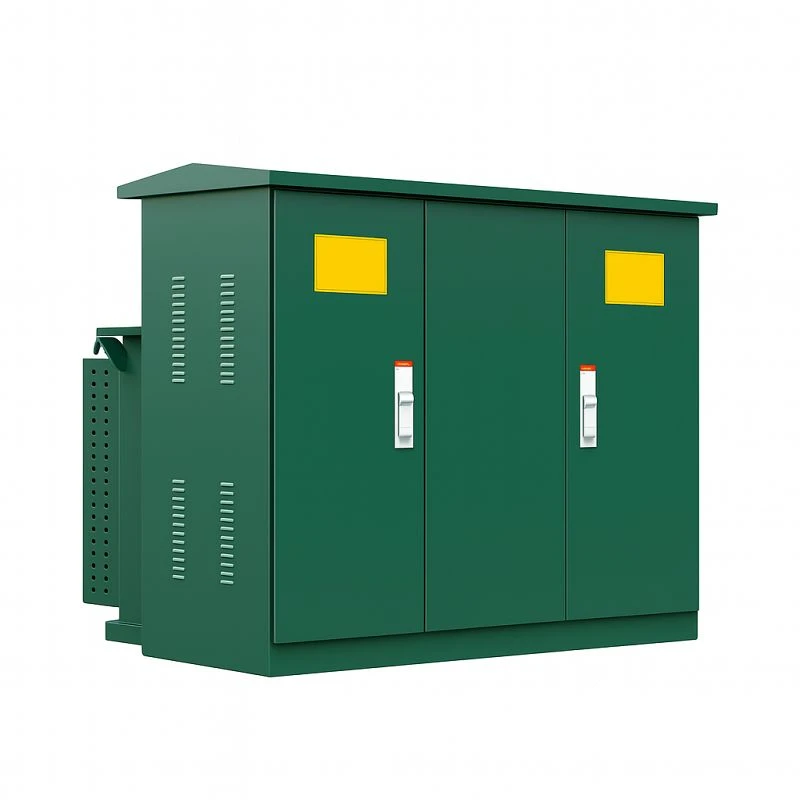

1500 kVA Pad-Mounted Distribution Transformer

1500 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 12.47kV / 13.2kV / 24.9kV / 34.5kV input networks and 480Y/277V (Standard) or 208Y/120V output distribution. It uses ONAN (Mineral Oil or FR3) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

Powering Vertical Neighborhoods

For ground-level utility and industrial distribution, powering Vertical Neighborhoods is treated as a practical design and selection point rather than generic catalog wording.

• The 1500 kVA Pad Mounted Transformer acts as a centralized substation for large-scale infrastructure. While physically imposing, it is engineered with a low-profile cabinet to blend into the landscaping of high-value properties.
• This unit redefines the category of residential pad mounted transformer. Unlike small 25 kVA cans found in suburban backyards, this 1.5 MVA giant is designed for "Vertical Neighborhoods"-high-rise condominium towers or large apartment complexes. A single unit can energize over 100 individual residential units (assuming standard diversified loading), replacing the need for banks of smaller transformers and simplifying the estate's underground cable network.

Cable Management: Staggered Spades

For ground-level utility and industrial distribution, cable Management: Staggered Spades is treated as a practical design and selection point rather than generic catalog wording.

• The engineering challenge at 1500 kVA is not just transforming voltage, but physically terminating the output current. At 480V, this unit delivers approximately 1804 Amps. To carry this load, installers often need to land 6 to 8 parallel runs of 500 MCM or 750 MCM cables per phase.

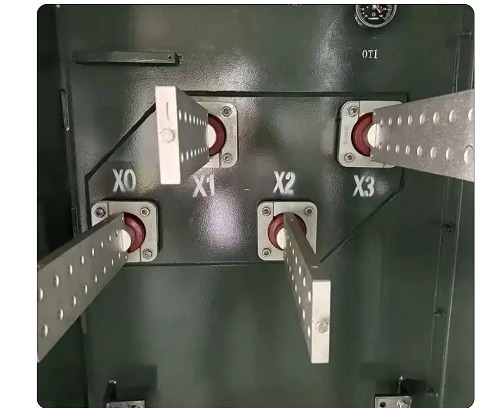

• To accommodate this "Sea of Cables," the Low Voltage compartment features a Staggered Spade Arrangement.
• Staggered NEMA spade terminals in low voltage compartment for.
• Connecting multiple heavy cables.
• The Geometry: The NEMA spade terminals (paddles) for Phase A, B, and C are not aligned in a flat plane. Instead, they are offset in depth.
• The Benefit: This tiered spacing provides installers with critical wrench clearance. It allows for the proper torquing of bolts on the rear cables without being obstructed by the front cables, ensuring a secure, low-resistance connection that prevents "hot spots" from loose lugs.

Installation: The Pad Interface

Installation: The Pad Interface connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• Properly situating this asset requires precision. When contractors prepare to mount transformer units of this mass (approx. 4,500 kg), the concrete pad must be reinforced.
• Window Alignment: The bottom sill is designed with a large, open rectangular throat. We provide precise template drawings to ensure the primary and secondary conduits in the concrete align perfectly with the bushing wells, preventing stress on the elbows during the final set-down.
• Sill Integrity: The base rails are constructed from structural C-channel steel, coated with a coal-tar epoxy or undercoating to prevent corrosion where the metal meets the potentially damp concrete surface.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification / Options.
• 1500 kVA (1.5 MVA).
• 47kV / 13.2kV / 24.9kV / 34.5kV.
• 480Y/277V (Standard) or 208Y/120V.
• NEMA 10-Hole or 12-Hole Spades (Staggered).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

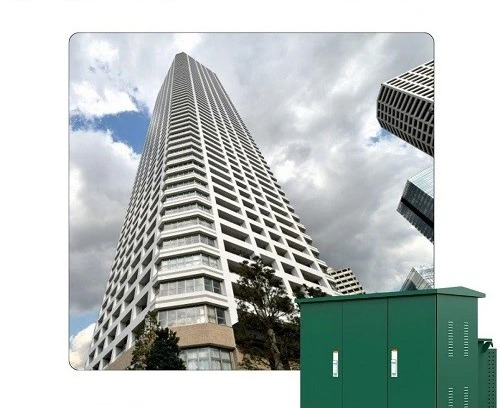

• 1500 kVA pad mounted transformer powering a high-rise residential.
• Condominium tower.
• High-Rise Condos: Sitting at the base of a 30-story residential tower, stepping down 13.8kV to 480V for the building's riser bus duct.
• Mixed-Use Developments: Powering a city block that combines ground-floor retail with upper-level apartments.
• University Dorms: A single centralized power node for a large student housing campus.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
