| Part Number: | PZ | 12 | A0 | R6 | 1 | NO | M |
|---|---|---|---|---|---|---|---|
| Explanation: |
Series PZ - Piezo switch |
Switch Size 12 - 12mm |
Colors / Materials A0 - Natural anodized aluminum |
Operator R6 - Operator with finger location, height 1.50mm The operator can be customized. |
Ratings 1 - 200mA 24VAC/DC |
Switch Status NO - Normally open |
Switch Function M - Momentary |

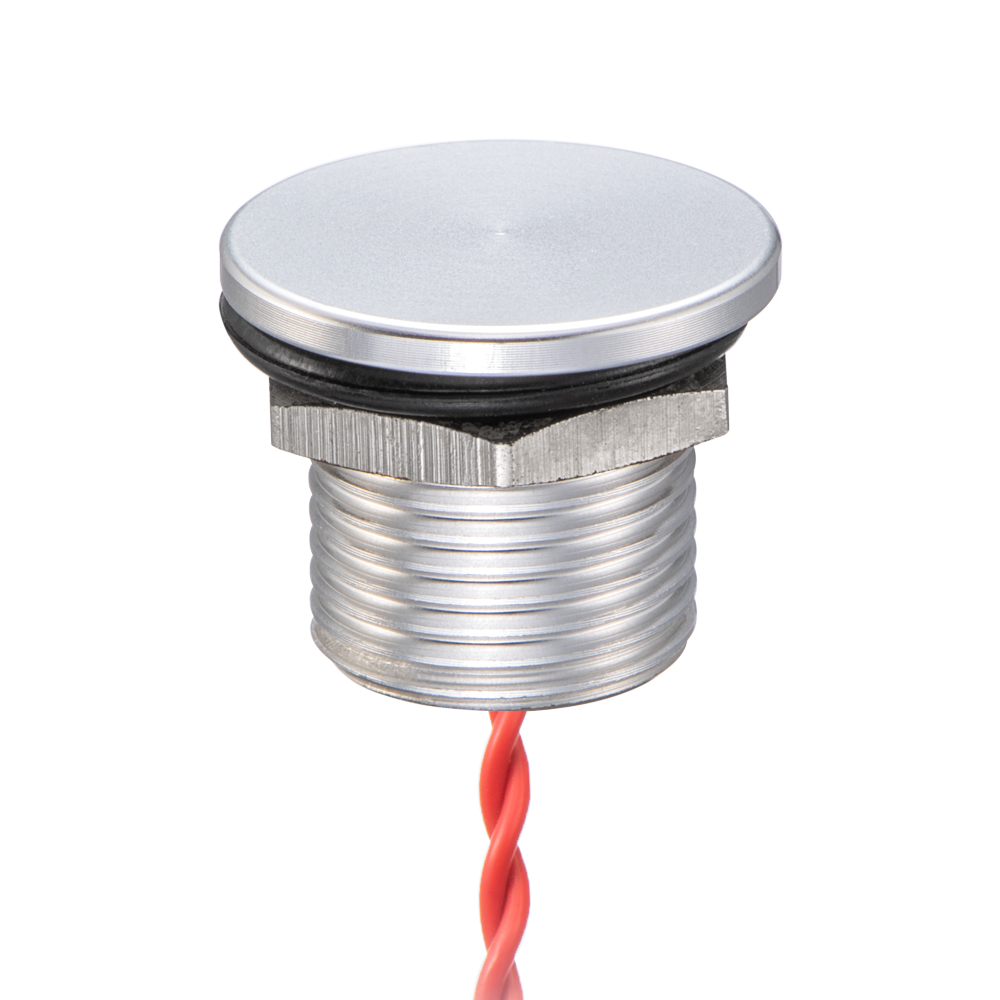

The 12mm Piezo Switch is a compact sealed panel switch for tight control panels and demanding environments. Its solid-state piezo output provides a long service life with no moving mechanical contacts, while the flat metal actuator is easy to clean and resists liquid and contaminant ingress.
| Voltage | 1-24V AC/DC |
| Switching current | 0.2A / 1A |
| Pulse duration | 125-300ms |
| Rated breaking capacity | 1W |
| Actuating force | 3-5N |
| Actuating travel | 0.002mm |
| Connection | Wires |
| Operating temperature | -40°C to 75°C standard |
| IP protection | IP69K front and back |
| Impact protection | IK06 |
The sealed surface and high cycle life make this switch suitable for medical equipment, food-processing machinery, access control panels, industrial controls, and other applications that need reliable operation in wet or frequently cleaned environments.
