1250 kVA Oil-Immersed Distribution Transformer

1250 kVA Oil-Immersed Distribution Transformer is specified for 1250 kVA oil-immersed distribution service. It uses 11 kV (Standard) primary voltage. It uses ONAN (with ONAF provision) cooling. Engineering details address heavy-Duty Industrial Grid Node, construction, application context, and electrical data for project selection.

Heavy-Duty Industrial Grid Node

For this 1250 kVA rating, heavy-duty industrial grid node affects how the transformer is selected, protected, and operated in the field.

• Is engineered to serve as the central energy hub for heavy industrial facilities and large commercial districts.
• With a rated low-voltage current output of approximately 1800 Amps, this rating provides the massive capacity required to drive large motor control centers (MCCs) and heavy machinery.
• Acting as a critical step-down link, this 11kv transformer efficiently converts medium voltage grid power (11,000V) to a stable 400V or 415V utilization level.
• It is designed with enhanced insulation coordination to withstand grid switching surges, ensuring the safety of downstream low-voltage assets.

Cooling Scalability: ONAN to ONAF

The cooling scalability: ONAN to ONAF details below highlight design choices that matter during continuous distribution service.

• A distinct feature at the 1250 kVA level is the adaptability of the cooling system.

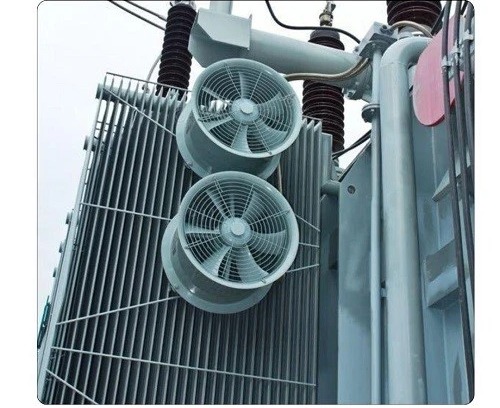

• While the standard unit operates on ONAN (Oil Natural Air Natural), the tank design often includes provisions for cooling fans.
• Overload Potential: By upgrading to ONAF (Oil Natural Air Forced) cooling (adding external fans to the radiators), the capacity of this rating can effectively be boosted by 15% to 20%.
• This allows facility managers to handle unexpected load growth without immediately replacing the entire transformer.
• Radiator Configuration: Unlike smaller units that use fixed corrugated walls, the 1250 kVA model typically employs detachable panel radiators.

High-Voltage Engineering

These high-voltage engineering points connect the electrical rating with grid conditions, downstream equipment, and maintenance expectations.

• Reliability at the MV side is paramount.
• As a premier 11kv transformer, the high-voltage windings are wound using multi-layer insulation paper to meet specific Basic Impulse Level (BIL) standards (typically 75kV or 95kV peak).
• This ensures the unit remains resilient against lightning strikes or switching impulses common in 11kV overhead distribution networks.

Installation & Connection Context

Application guidance links the transformer rating with the substations, industrial loads, and site conditions where it is normally used.

• Given the high current output and voltage class, the installation requirements are specific: HV Termination: The 11kV side can be fitted with a cable box tailored for XLPE cables or open bushings for overhead line connection, depending on the site structure.
• LV Termination: Due to the difficulty of terminating multiple heavy cables for 1800A, the LV side is usually fitted with a large busbar palm or a specialized flange for Busbar Trunking System (BBT) connection.
• Foundation: this rating requires a reinforced concrete plinth capable of supporting a total weight exceeding 3.5 tons.
• 1250 kVA oil immersed transformer installed on a concrete plinth in an industrial substation.

Electrical and Mechanical Data

The electrical data summarizes the main values needed for project comparison and project comparison.
