10000 kVA Oil-Immersed Distribution Transformer

10000 kVA Oil-Immersed Distribution Transformer is specified for 10,000 kVA (10 MVA) oil-immersed distribution service. It steps 33kV / 35kV networks to 6.6kV / 11kV (Distribution Voltage) loads. It uses ONAN (Base) / ONAF (Peak) cooling. Engineering details address primary Substation Reliability, construction, application context, and electrical data for project selection.

Primary Substation Reliability

For this 10000 kVA rating, primary substation reliability affects how the transformer is selected, protected, and operated in the field.

• It acts as the heart of municipal substations and large-scale industrial power rings.
• At this capacity, the unit is responsible for energizing entire districts or massive production lines.
• Consequently, engineering priority shifts from simple power conversion to asset longevity and fault containment.
• As a heavy-duty three phase oil immersed transformer, this rating is built to operate continuously for 30+ years.
• To achieve this, we move beyond standard sealing methods and employ an Air Cell (Rubber Bag) Conservator System.

Advanced Fault Detection & Safety

The advanced fault detection and safety details below highlight design choices that matter during continuous distribution service.

• A 10 MVA fault releases massive energy.

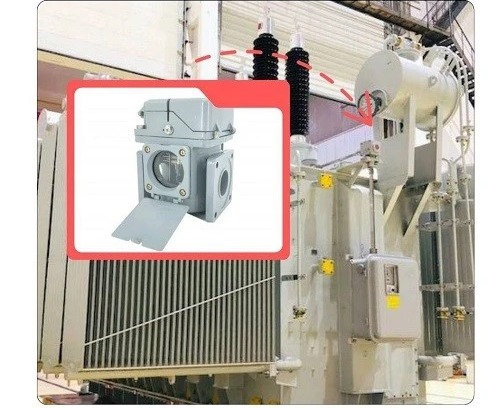

• Therefore, safety mechanisms are non-negotiable: Double-Float Buchholz Relay: We equip the unit with a two-stage relay.
• The first stage (alarm) detects minor gas accumulation from slow insulation degradation (e.g., partial discharge), while the second stage (trip) instantly isolates the transformer during a sudden oil surge caused by a short circuit.
• Directional PRD: A large Pressure Relief Device is mounted on the tank cover.
• Crucially, for a unit of this size, it is fitted with a directional cowl to channel hot oil away from the operator walkways in the event of an internal explosion.

Impedance & Grid Stability

These impedance and grid stability points connect the electrical rating with grid conditions, downstream equipment, and maintenance expectations.

• To integrate safely into the 11kV or 33kV network, impedance control is vital.
• Fault Limitation: Standard 4-5% impedance is dangerous at 10 MVA because the short-circuit current would be too high for breakers to handle.
• This rating is engineered with a standard impedance of 8.0% to 9.0%.
• This intentionally higher reactance limits the fault current to <25kA on the secondary side, matching the standard breaking capacity of medium-voltage switchgear.

Installation & Application Context

Application guidance links the transformer rating with the substations, industrial loads, and site conditions where it is normally used.

• City Grid Substations: Stepping down 33kV transmission to 11kV to feed a network of 20-30 smaller distribution transformers scattered across a residential zone.
• Hyperscale Data Centers: Used in an N+1 configuration to power large server halls, where the high impedance helps limit arc-flash energy downstream.
• Cement & Steel Plants: Feeding the main MV switchboard that powers large crushers and mills (often requiring 6.6kV motors).

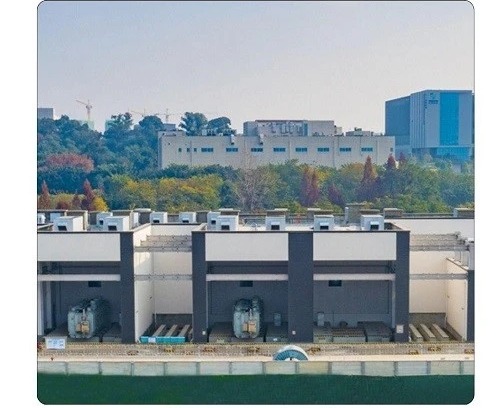

• 10000 kVA oil immersed transformer operating in a city grid distribution substation.

Electrical and Mechanical Data

The electrical data summarizes the main values needed for project comparison and project comparison.
