1000 kVA Pad-Mounted Distribution Transformer

1000 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 12.47kV / 13.2kV / 13.8kV / 34.5kV input networks and 480Y/277V or 208Y/120V output distribution. This series description presents the application, construction, protection, and specification details in finished product copy.

The 1 MVA Industrial Power Hub

For ground-level utility and industrial distribution, the 1 MVA Industrial Power Hub is treated as a practical design and selection point rather than generic catalog wording.

• The 1000 kVA Pad Mounted Transformer represents the "Gold Standard" capacity for heavy industrial facilities and large-scale commercial campuses. Crossing the 1 MVA threshold, this unit is engineered to manage high continuous currents (approx. 1200 Amps at 480V), serving as the primary energy gateway for manufacturing plants or data center blocks.
• As a high-capacity three phase pad mounted transformer, reliability is paramount. Unlike smaller commercial units designed for intermittent loads, the core and coil assembly in this 1000 kVA model are braced to withstand the mechanical stress of continuous duty cycles and the thermal shock of heavy motor start-ups common in industrial environments.

Live-Front Architecture: Accessibility and Maintenance

For ground-level utility and industrial distribution, live-Front Architecture: Accessibility and Maintenance is treated as a practical design and selection point rather than generic catalog wording.

• While Dead-Front designs are common for public safety, specific utility protocols or industrial applications require a live front pad mounted transformer.
• Live-front porcelain high voltage bushings allowing direct.
• Lightning arrester connection.

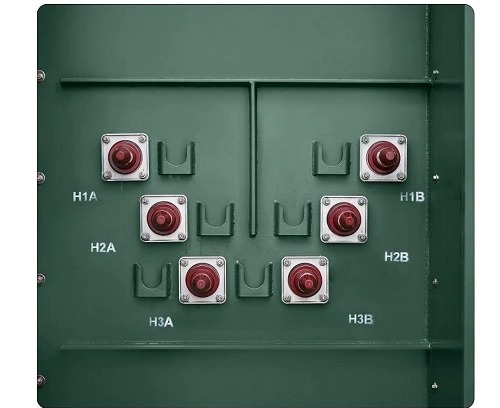

• Porcelain Terminations: Instead of insulated rubber elbows, the high-voltage compartment features exposed porcelain bushings equipped with eyebolt terminals.
• The Advantage: This "Live-Front" configuration allows for the direct mounting of Distribution Class Lightning Arresters right at the cable termination. It also permits maintenance crews to visually verify the "Open/Closed" status of the connection and easily attach grounding clamps during service work, which is often preferred by legacy utility maintenance teams.
• Safety Barrier: To mitigate the risk of accidental contact, the live parts are shielded behind a removable GPO-3 glastic barrier, ensuring that operators are protected when opening the cabinet for visual inspection.

Utility-Grade Construction Standards

Utility-Grade Construction Standards connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• Designed as a rugged pad mounted utility transformer, the enclosure is built to survive decades of environmental abuse without compromising the grid.
• Tank Rigidness: The tank walls are fabricated from heavy-gauge steel (typically 7-gauge or thicker for the sill) to prevent deflection under the hydrostatic pressure of over 400 gallons of oil.
• Tamper Resistance: The cabinet construction strictly follows ANSI C57.12.28. This includes "penta-head" security bolts, recessed padlocks, and internal hinges that cannot be disassembled from the outside, effectively hardening the unit against copper theft and vandalism in remote utility easements.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 47kV / 13.2kV / 13.8kV / 34.5kV.
• 480Y/277V or 208Y/120V.
• Rated Current (LV).
• Live-Front (Porcelain) or Dead-Front.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

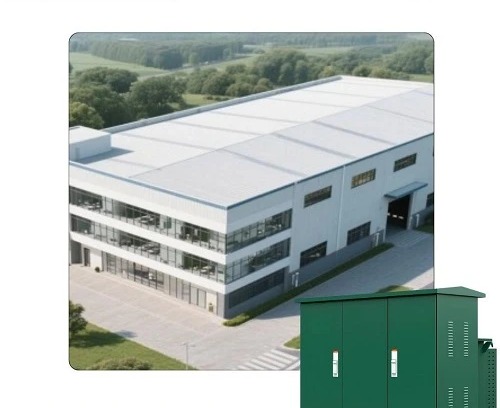

• 1000 kVA pad mounted transformer serving a large industrial.
• Manufacturing plant.
• Industrial Manufacturing: Powering main switchboards for factories where maintenance teams require visible clearance points (Live-Front) for safety tagging protocols.
• Utility Substations: Serving as station service transformers where lightning protection (arresters) must be mounted directly on the bushings.
• Large Pumping Stations: Driving 1000HP+ water pumps where the transformer must handle high inrush currents without voltage collapse.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

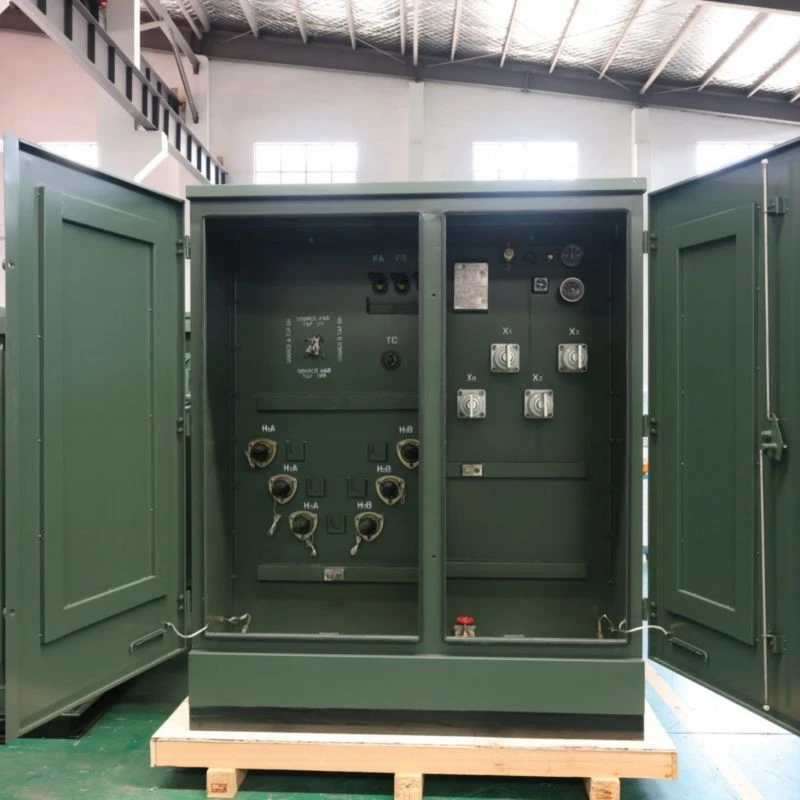

Product Detail Images
